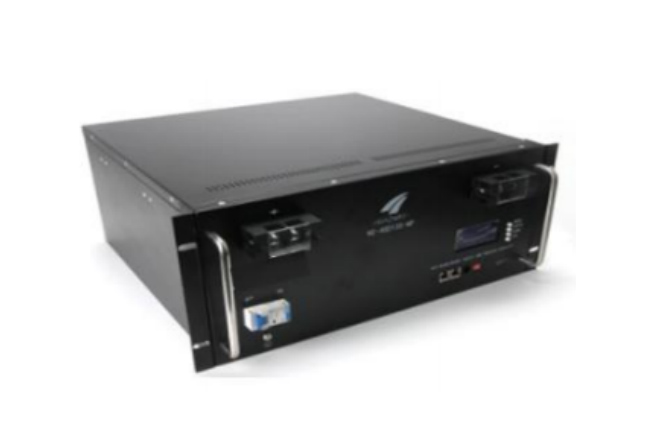

T4850-3U

Name: T4850-3UModel:

Applicable scope:

Product details

Features of LiFePO4 Battery

● Longer Cycle Life: Offers up to 10 times longer cycle life and

5 times longer float/calendar life than lead acid battery,helping to

minimize replacement cost and reduce total cost of ownership.

● Lighter Weight: About 40% of the weight of a comparable

lead acid battery,A ”drop in” replacement for lead acid battery.

● Higher Power: Delivers twice power of lead acid battery, even high discharge rate,while maintain high energy capacity.

● Wider Temperature Range: -10℃~55℃.

● Superior Safety: Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact,over charging or short circuit situation.

● No Memory Effect: Support unstable partial state of charge(UPSOC) (charge/discharge)

Functions of Battery

● OVP,UVP,OTP,OCP,SCP.

● Self-management on charging and discharging,single cell  balancing function.

● Supports communication with equipment over RS485.

● Intelligent design,supports battery upgrade over RS232.

● Colorful LCD,displays battery information

Qualifications

● 20 years professional experience on lithium ion battery  power designing, manufacturing, sales

● Passed ISO9001, ISO14001, ISO45001, UL1642, CE, ROHS, IEC62619, IEC62620, UN38.3

● Battery cell cost advantage


General Data
Nominal Voltage48V
Nominal Capacity50Ah
Energ2400Wh
Internal Resistance(ACR)≤30mΩ
Cycle Life≥3000 次
Design Life≥10 years@25℃
Self-Discharge(30days)≤5% @25℃
Efficiency of Charge≥98%
Efficiency of Discharge

≥100% @ 0.2C

≥96% @ 0.5C
Charge Mode
0.2C to 54V,then 54V charge current to 0.02C(CC/CV)
Max.Continuous Charge Current
50A
Max.Continuous Discharge Current
50A
Discharge Cut-off Voltage
≤43.5V
Water Dust Resistance
IP21
CaseIron(Insulation painting)
Dimensions(W*D*H) (excluding hanger and handlebar)442*300*133mm
Max.Weight
≤22kg
Min.Gravimetric Specificen ergy≥110Wh/kg
Parallelin maximum15 pcs
Operating Environment
Charge Temperature Range
0℃~45℃
Discharge Temperature Range-10℃~55℃
Optimum Operation Temperature10℃~35℃
Storage Temperature

-10℃~35℃
≤85% Relative Humidity
General Functions
Parallel Communication
RS485
Battery with Equipment
RS485
Battery De bugging Communication
RS232
SOC Light
4 * LED
Charge Current limitWhen the charging current exceeds the set value,turn on the current limit and limit the current to 20A
Optional Functions
LCD ScreenYes Displays the total voltage pack,cell voltage,temperature,BMS status,etc
No
Gyroscopeanti-theft
Yes
Keep battery tilt more than 15° to turn on anti-theft
No
BuzzerYes  No
Dry ContactYes
PIN1 to PIN2:Normally open,closed during low power
PIN3 to PIN4:Normally open,closed during fault protection
No
